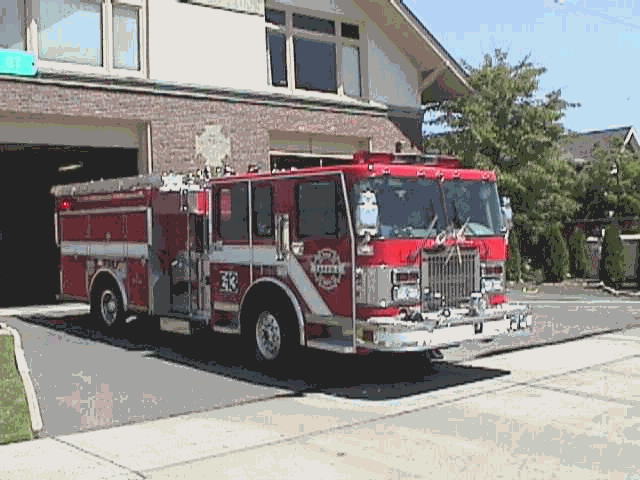

ENGINE 13 SPECIFICATIONS
| Detroit Diesel Series 60 | 6
cylinder 4 stroke Turbo Charged 129 cu in per cylinder |
| Horsepower | 430hp @ 2100 rpm |
| Displacement | 774cu in (12.7lt) |
| Allison HD4060P Transmission |
Electronically Controlled 4 Speed Automatic w/ Overdrive |
| Shifting RPMs | 2100 RPM |
| Engine No Load Governed Speed | 2225 RPM |
| Fluid | Capacity | Type | |
| Fuel | 50 gal | Diesel | |
| Chassis Engine Oil | 41 qts | 15w40 | *Monograde oils should never be used |
| Chassis Engine Coolant | 52 qts | 50/50 | *Do not use Sierra Anti-Freeze |
| Drive Axle Lubrication Fluid | 41 pts | 85w140 | |
| Pump Trans Lubrication Fluid | 1 qt | 80w90 | |
| Chassis Trans Fluid | 51 qts | Dex 3 | |
| Power Steering Fluid | 4 qts | Dex 3 | |
| Cab Tilt Mech Fluid | 4 qts | Dex 3 | |
| Equipment Rack Fluid | 4 qts | Dex 3 | |
| Pump Primer | 4 qts | Sierra Anti-Freeze | |
| Batteries | 6 | 12 volt | |
| Alternator | 290amp |

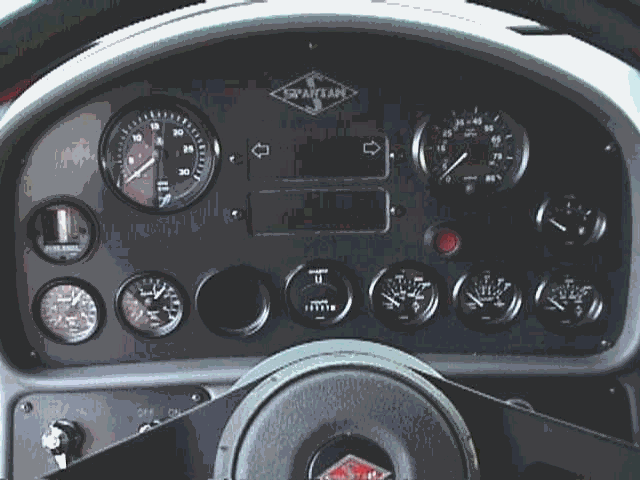

| Gauges | Normal Operating Range | Engine 13 Normal Range | |
| Oil Pressure | 35-45 psi | 40-45psi | |
| Voltage | 13.8 - 14.2 volts | 14.2 volts | |
| Transmission Oil Temp | 180-275 deg F | 175-250 deg F | |
| Air Pressure (Front And Rear) | 90-120psi | 120 psi | |
| Water Temp | 180-200 deg F | 190 deg F | |
| Converter Oil | 170-200psi | 180 psi | |
| Vehicle Dimensions | |||
| Height | 9' 6" | Top of Deck Gun | |
| 9' | Top Of Ladder Rack | ||
| Width | 8' | Body | |
| 10' 1" | Mirror to Mirror | ||
| Ladder Rack Width when down | 3' 6" | ||
| Length | 30' 4" | ||
| Wheel Base | 178" | ||
| Turning Radius | 36' | ||
| Ground Clearance | 9 3/4" | Front Axle | |
| Angle of Approach | 14.9 deg | ||
| Angle of Departure | 8.7 deg | ||
| Gross Vehicle Weight | 43,800 | ||
| Front Axle | 20,000 | ||
| Rear Axle | 23,800 | ||
| Tires | Size | Pressure | |
| Front | 425/65R22.5 | 125 psi cold | |
| Rear | 11R22.5 | 115 psi cold | |
| Brakes | |||
| Rockwell Air Actuated 4 Wheel Disc | |||
| Maxi Brake | Locks wheels, 40 psi min to release | ||
| Aux Braking | Jake Brake | ||
| Air Compressor | on <100psi | ||
| off >125psi | |||
| Secondary Tank Fills | 90 psi | ||
| Alarm Sounds | 60psi |
