ENGINE 13 HOSES
The hose used by TFD is manufactured by Angus and is made of synthetic
materials. It is constructed using a "through weave extrusion process", in which
three layers of polyester or nylon fibers are woven together and totally encased
in nitrile rubber/polyvinyl chloride coating. this process creates a single
thickness layer that eliminate the possibility of delamination.
Synthetic hose is resistant to chemical exposure. Substances such as
hydrocarbons, oils and greases have no adverse effects on it. It is also able to
withstand temperatures as low as -35 degrees F.

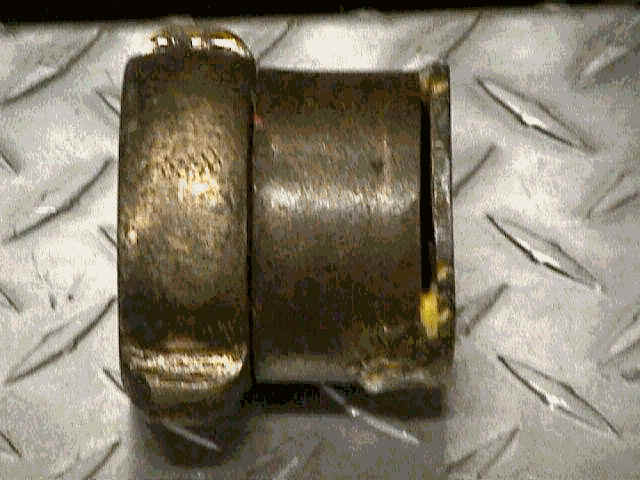

The couplings are constructed of either aluminum alloy or pyrolite. Each
female coupling has a neoprene gasket which forms a watertight seal when the
couplings are tightened.
1" HOSE
| Couplings |
1" National Standard Threads |
| Friction Loss/100' |
50psi @ 40gpm |
| Volume/100' |
6 gallons @ 50lbs |
| Testing |
No annual test |
- 200’ - PRE-CONNECT IN REAR LOWER COMPARTMENT OF APPARATUS
TOTAL 1" = 200’
1 3/4" HOSE
| Material |
Synthetic |
| Couplings |
1 1/2" National Standard Threads |
| Friction Loss/100' |
30psi @ 150gpm |
| Volume/100' |
12.5 gallons @ 105lbs |
| Testing |
Annually: 250psi for 5minutes |
- (2) 150’ - PRE-CONNECT, CROSSLAY
- (1) 200’ - PRE-CONNECT, REAR HOSEBED
- (1) 100’ - SKID LOAD, REAR HOSEBED
- (1) 50’ - BUNDLE, W/ NOZZLE AND 2 1/2" REDUCER, REAR HOSEBED
TOTAL 1 3/4" = 650’
2 1/2" HOSE
| Couplings |
2 1/2"" National Standard Threads |
| Friction Loss/100' |
20psi @ 500gpm |
| Volume/100' |
25 gallons @ 212lbs |
| Testing |
Annually: 250psi for 5minutes |

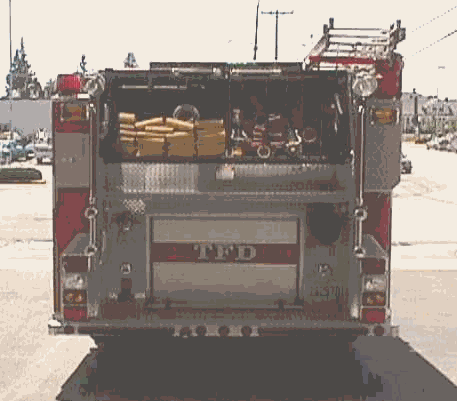

- (1) 200’ - PRE-CONNECT, REAR HOSEBED
- (5) 100’ - BUNDLES, REAR HOSEBED
TOTAL 2 1/2" = 700’
3" HOSE
| Couplings |
2 1/2"" National Standard Threads |
| Friction Loss/100' |
20psi @ 500gpm |
| Volume/15' |
5.5 gallons @ 45lbs |
| Testing |
Annually: 250psi for 5minutes |
- (2) 15’ - STRAIGHT ROLLS, COMPARTMENTS #1 & #8
TOTAL 3" = 30’
5" HOSE
| Material |
Synthetic |
| Couplings |
5" Storz |
| Friction Loss/100' |
5psi @ 1000gpm |
| Volume/100' |
102 gallons @ 850 lbs |
| Testing |
Annually: 200psi for 5minutes |
- (2) 25’ - FLAT LOAD, BELOW EACH SIDE OF THE PUMP PANEL
- (1) 50’ - STRAIGHT ROLL, COMPARTMENT #2
- 700’ - FLAT LOAD, REAR HOSEBED
TOTAL 5" = 800’
TOTAL HOSE ON ENGINE 13.....2,380 FEETENGINE 13
NOZZLES
AUTOMATIC FOG NOZZLES
ELKHART CONSTANT PRESSURE, VARIABLE GALLONAGE NOZZLES

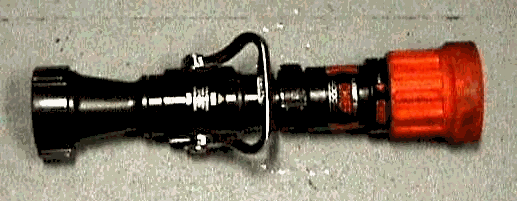

ELKHART BREAKAWAY TSM-10F
- BOOSTER LINE
- 60 - 150 GPM
- 40 GPM @ 100 PSI

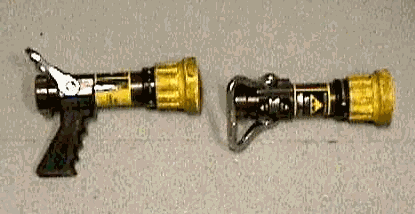

ELKHART BREAKAWAY TSM-20F
- 1 3/4" CROSSLAYS, 1 3/4" REAR PRE-CONNECT
- 60 - 200 GPM
- 212 GPM @ 100 PSI

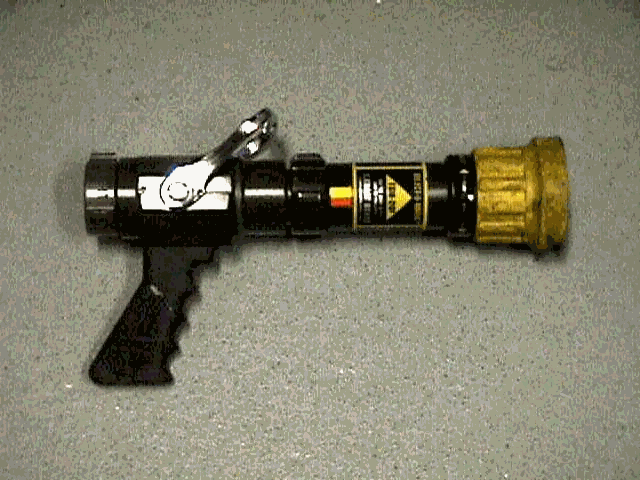

ELKHART SM 10FG
- 1 3/4" SKID LOAD, 50’ - 1 3/4" BUNDLE
- 60 - 150 GPM
- 100 GPM @ 100 PSI
** ELKHART DOES NOT RECOMMEND THIS NOZZLE FOR USE IN HIGH-RISE OR STANDPIPE
OPERATIONS
ELKHART CHIEF 4000-24 BREAKAWAY
- 2 1/2" REAR PRE-CONNECT
- 175 - 325 GPM
- 250 GPM @ 50 PSI
OTHER FOG NOZZLES

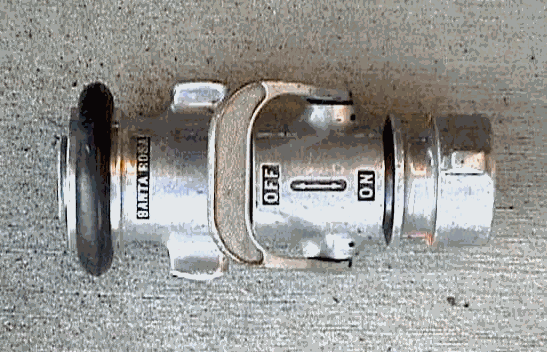

SANTA ROSA FOG NOZZLE
- COMPARTMENT #2
- USED WITH 2 1/2" ATTACK LINES
- 130 - 170 GPM @ 100 PSI
- OPERATE WITH BALE FULLY OPEN OR CLOSED
SOLID STREAM TIPS
15/16" TIP
- 180 GPM @ 50 PSI
- FOR USE WITH 2 1/2" HOSE
1/2" TIP
- 50 GPM @ 50 PSI
- FOR USE WITH EITHER 1 3/4" OR 2 1/2" HOSE
SPECIALTY NOZZLES

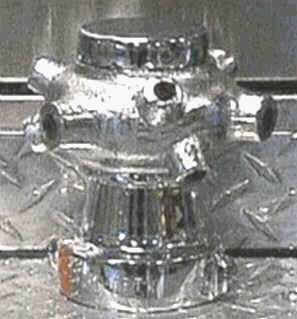

BRESNAN DISTRIBUTOR
- 2 1/2" FEMALE INLET
- 340 GPM @ 50 PSI
- MINIMUM 30 PSI NEED IN ORDER TO EFFECTIVELY SPIN THE NOZZLE
- 9 DISCHARGE PORTS (3 - 5/8", 3 - 9/16", 3 - 1/2")
- COVER 36’ DIAMETER
- SHOULD BE LOWERED 1/3 OF WAY INTO THE ROOM
- MUST BE TIED OFF
- NO SHUT OFF DEVISE

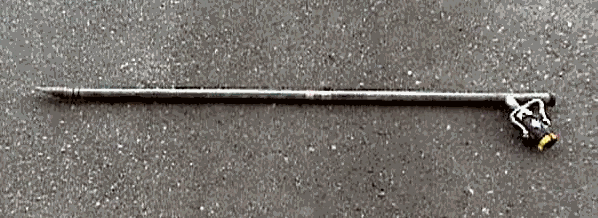

PIERCING APPLICATOR
- 100 GPM @ 125 PSI
- 32 DISCHARGE PORTS
- 6’ 3/8" OVERALL LENGTH
- 5’ 5" PENETRATION REACH
- STEEL STAFT
- 5" BEVELED TUNGSTEN CARBIDE TIP & TUNGSTEN CARBIDE STRIKING PLATE
- CAN BE DRIVEN THROUGH ANY OBJECT THAT A FIREFIGHTER IS CAPABLE OF
DRIVING IT THROUGH.
WATER CURTAIN
- 1 1/2" FITTINGS
- 1/8" X 4" DISCHARGE OPENING
- DISCHARGE APPROXIMATELY 15’ HIGH AND 30’ WIDE
- HELD IN PLACE BY ITS OWN BACK PRESSURE
- 100 GPM @ 100 PSI

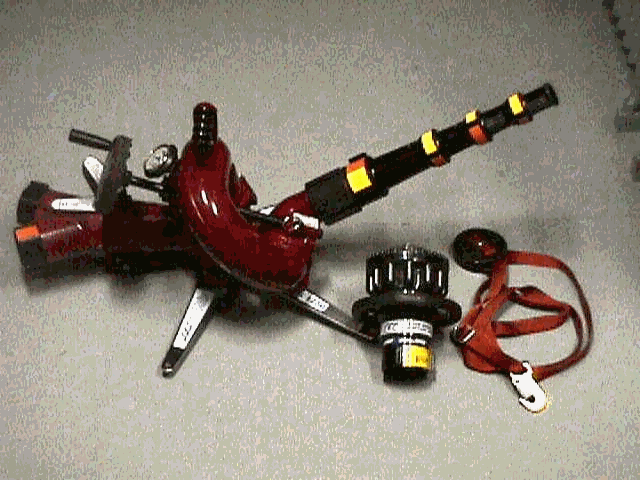

MASTER STREAMS
- TFT CROSSFIRE DECK GUN WITH PORTABLE BASE
- PORTABLE STAND HAS (2) 2 1/2" CLAPPERED INLETS
- SAFETY SHUTOFF ON THE BASE REDUCES FLOW BY 90% IF THE BASE COMES OFF OF
THE GROUND
- WHEN IN PORTABLE MODE, WILL NOT GO BELOW 35 DEGREES OF ELEVATION
- WHEN IN PORTABLE MODE, MUST BE SECURED TO AN OBJECT CAPABLE OF
WITHSTANDING 900 LBS OF PRESSURE, AND SECURED BY A 1" WEBBING STRAP WITH A
3000 LB STRENGTH
- DRAIN AT BASE OF MONITOR OPENS WHEN INTERIOR PRESSURE IS LESS THAN 5 PSI
- "EXTEND A GUN" ON ENGINE ALLOWS MONITOR TO BE ELEVATED 18" ABOVE ITS
NORMAL POSITION
- MAXIMUM INTAKE PRESSURE - 175 PSI
- MAXIMUM FLOW 1250 GPM
- DELUGE FOG NOZZLE 150 - 1250 GPM
- FRICTION LOSS FOR THE MONITOR IS 25 PSI
STACKED SOLID STREAM TIPS...
Tip Size |
2" |
1
3/4" |
1
1/2" |
1
3/8" |
80 psi |
1050 gpm |
800 gpm |
600 gpm |
500 gpm |
