1st Stage Regulator

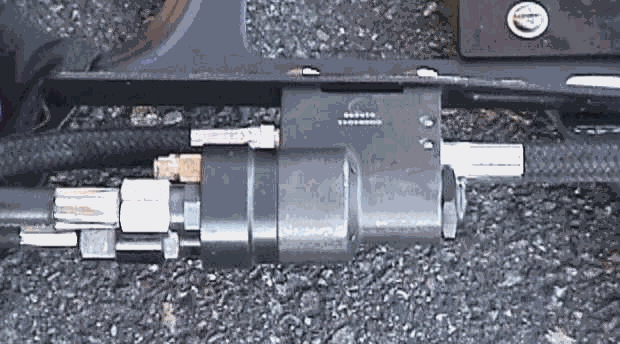

(High Pressure Regulator)...
- Mounted on the backplate near the cylinder
- Air from cylinder is routed to the regulator through a steel reinforced, fabric braided
high pressure hose, rated at 5000psi
- Regulator inlet has a sintered stainless steel filter
- Reduces cylinder pressure to a nearly constant output of 75 - 85 psi
- Pressure relief valve vents pressure in excess of 100psi, relief valve is then self
2nd Stage Regulator

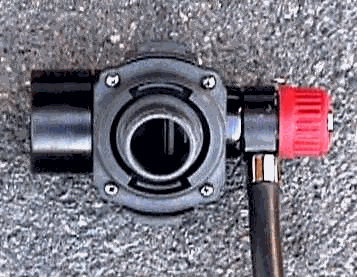

(MMR - Mask Mounted Regulator)...
- Air enters the MMR from the 1st Stage Regulator through a neoprene medium pressure hose
- Air flow is started by the user inhaling
- Positive pressure is maintained inside the face piece at approx. 1.5psi
- Pressure demand type regulator, allows flows of 350-500 lpm
- Attaches to the face piece with a quarter turn, and has a 70 degree swivel
- Red Bypass Valve knob, allows user to bypass regulator and control their air in the
event of a regulator failure, will flow 130-350lpm
- Shut-off button stops air flow when the user pushes the button in
